In the diamond drilling, exploration, and core sampling industry, maintaining the integrity of rock cores is vital for accurate geological analysis. While much attention is often placed on drilling equipment, core running procedures, and sample labelling, one essential yet frequently overlooked component is the core tray lid.
A robust and stackable plastic core tray lid transforms ordinary core waiters into a secure, space-efficient, and transport-ready storage system, ensuring that cores remain protected during transport and storage. Improper handling of core samples can compromise geological data, resulting in inaccurate mineral analysis and flawed resource evaluations.
Investing in stackable plastic core servers is not just a convenience—it is a strategic operational decision that safeguards sample integrity, improves efficiency, and enhances safety across mining and exploration operations.
Even with advancements in drilling technology, mining teams still face challenges with traditional core waiter handling:
Absence of stackable lids – Many plastic core waiters are supplied without lids designed for safe stacking, limiting vertical storage.

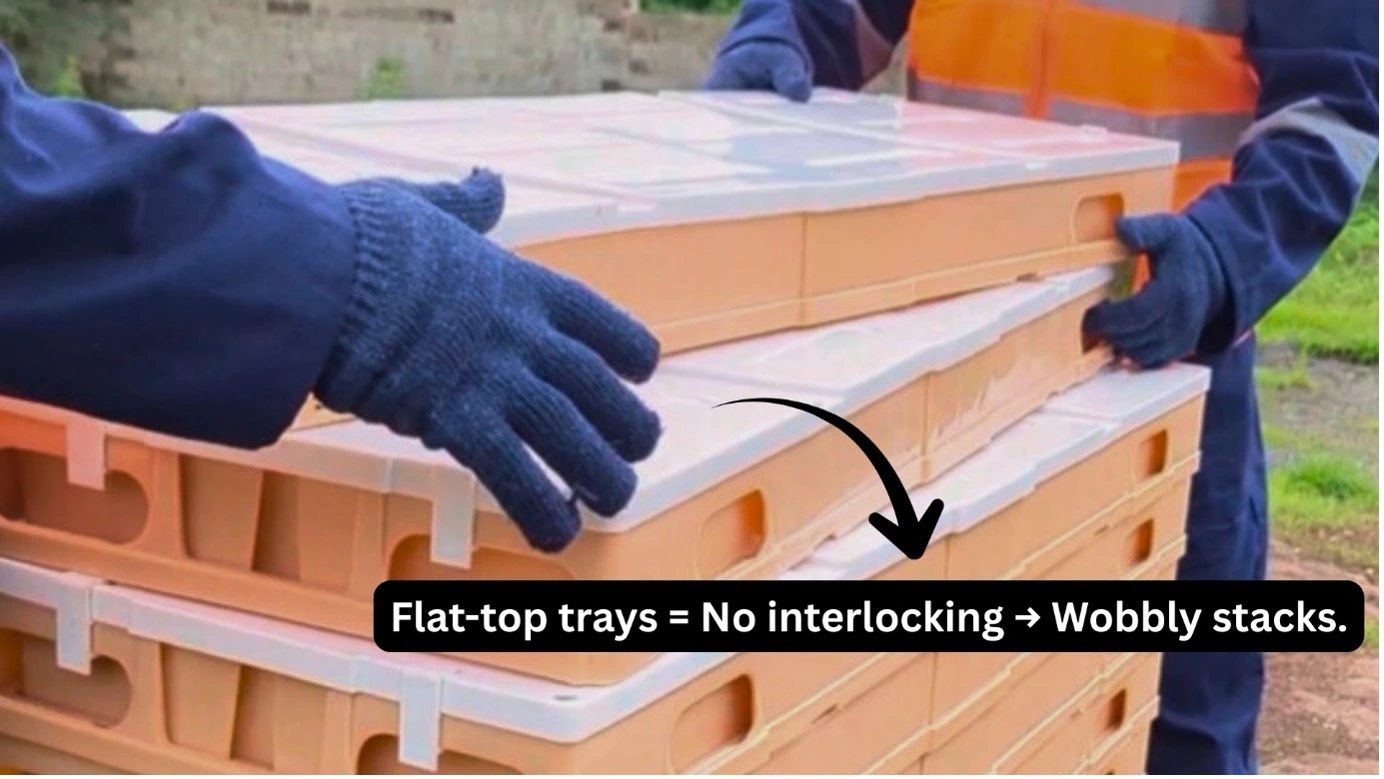

Unstable flat lids – Flat covers can slip or wobble, increasing the risk of spills or damage during stacking.
Heavy and rust-prone boxes – Metal and wooden boxes are cumbersome, prone to rust, and difficult to transport safely.
Uneven terrain issues – Mine sites often have irregular surfaces. Without interlocking lids, stacked trays need extra supports, increasing labor and reducing efficiency.
Transport instability – Truck, rail, or boat transportation of unsecured waiters can lead to shifted or fallen stacks.
Exposure to dust and debris – Open or poorly sealed trays leave cores vulnerable to contamination or accidental damage.
Safety hazards – Unstable stacks pose a risk to workers, slowing operations and increasing the chance of accidents.
These challenges underline the critical need for innovative stackable lids in the mining and exploration sector.
Mining and exploration professionals expect high-performance lids that meet the following criteria:
1. Interlocking design – Secure stacking for stable vertical heaps.
2. Stability on uneven surfaces – Function reliably on irregular mine terrain without additional supports.
3. Lightweight but strong – Easy to handle while maintaining structural integrity.
4. Weather resistance – Protect cores from rain, dust, UV exposure, and temperature fluctuations.
5. Secure locking mechanism – Ensure lids remain firmly in place during transport.
6. Universal compatibility – Fit HQ, NQ, and BQ core waiters, accommodating mixed-size samples.
7. Space optimization – Enable high-density storage in warehouses, mine camps, and shipping containers.
8. Core protection – Keep samples intact and uncontaminated for accurate geological analysis.
Indorock has developed a stackable plastic core tray lid system designed to address these operational challenges efficiently. Key features include:
Interlocking grooves and ridges – Prevent trays from sliding, even when stacked high.
Reinforced structural design – Distributes weight evenly, preventing flexing under heavy loads.

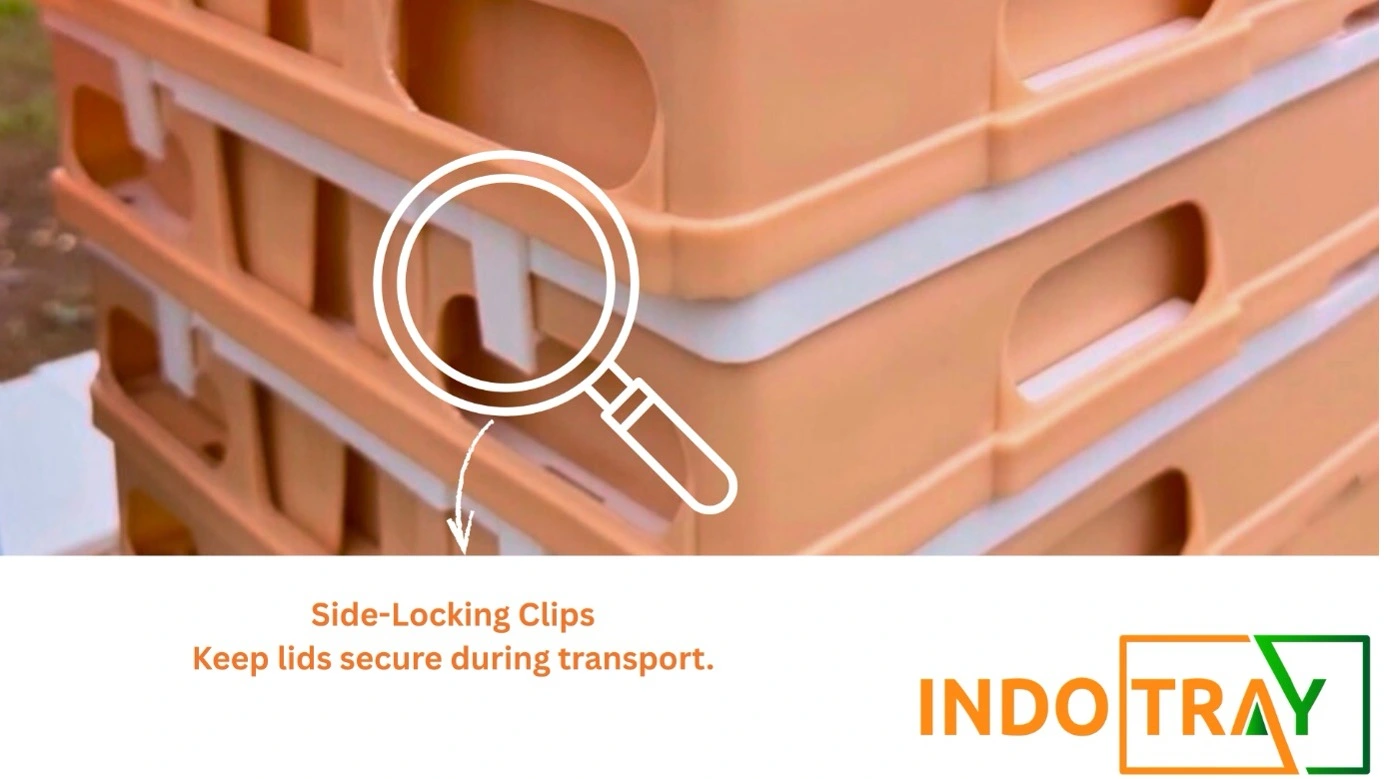

Side locking clips – Keep lids securely fastened during vibration-heavy transport.
Durable plastic material – Impact-resistant, rust-free, lightweight, and easier to handle than metal or wooden alternatives.
Universal fit – Compatible with HQ, NQ, and BQ core waiters.
Space-efficient stacking – Supports high vertical stacking without additional props, maximizing storage efficiency.
Demonstration videos by Indorock show how the lid and tray system interlocks securely, preventing slips, standing up to rainfall, and stabilizing on uneven surfaces. This proves the lid is more than a cover—it is a structural component of the core storage system.
Tight Fit with Tray Rim
The lid fits snugly along the tray rim, preventing any side-to-side movement. Unlike ordinary flat lids, it remains stable and secure, ensuring core protection.

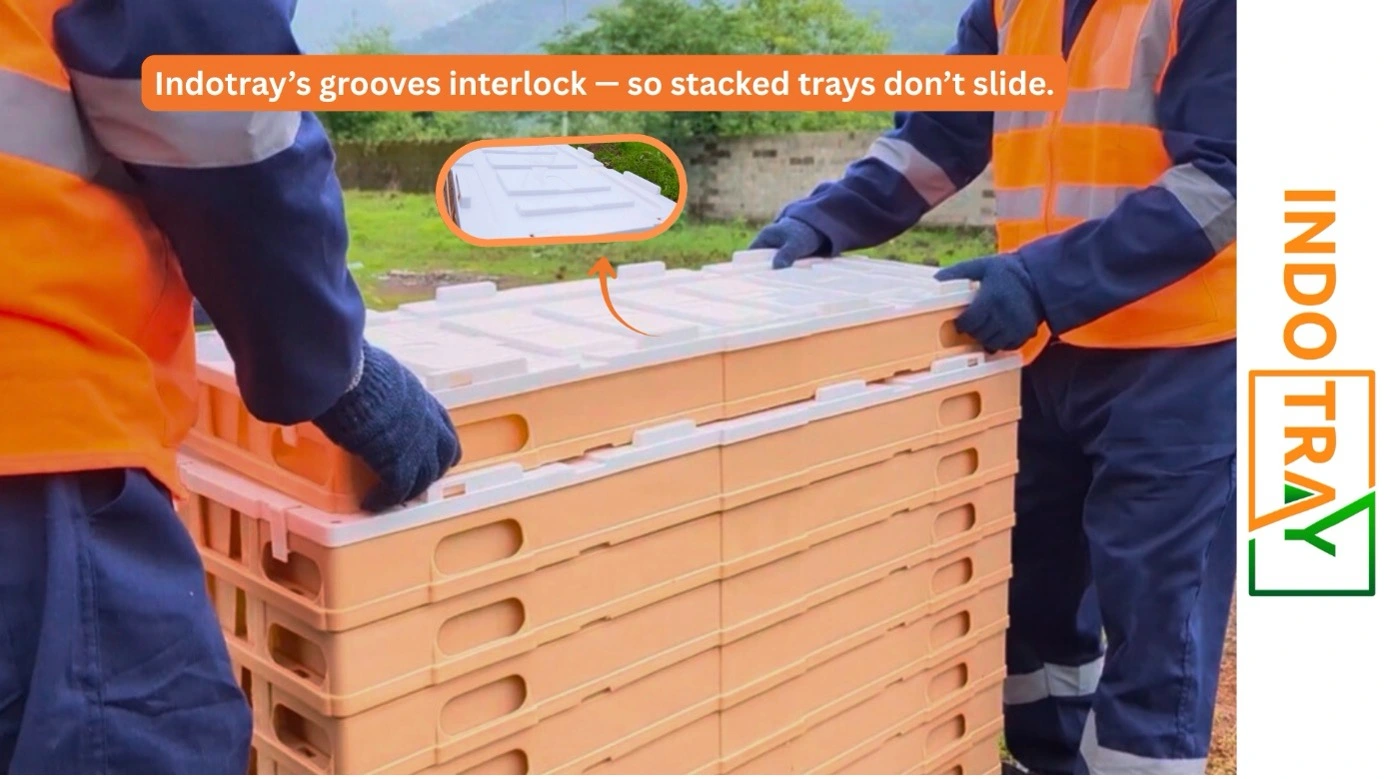

Groove and Ridge Interlock
Grooves and ridges on the lid’s top face allow the base of the next tray to nest perfectly, creating a solid interlocked stack.
Resistance to Sliding
Even when nudged or pressed sideways, trays remain aligned. The interlocking design ensures stability on uneven surfaces or during transport.
Cargo-Bearing Capacity
The reinforced structure distributes weight evenly, protecting cores from crushing or deformation.
Multi-Tray Stability
Multiple trays stacked together remain wobble-free without extra supports, a clear improvement over traditional metal or wooden boxes.
Plastic Core Tray Lids vs Steel/Wooden Boxes
Plastic lids are lightweight, while steel/wooden boxes are heavy.
Plastic lids are rust-free and weather-resistant, whereas steel/wooden boxes are prone to rust
Plastic lids provide interlocking stackability and support high vertical stacking, while steel/wooden boxes offer limited stackability and require props.
Plastic lids are easy to handle, while steel/wooden boxes are cumbersome.
Plastic lids provide high impact resistance, whereas steel dents and wood can break.
Plastic lids are economical for large operations, while steel/wooden boxes involve high initial and maintenance costs.
Conclusion: Plastic core trays with lids offer superior handling, durability, and storage efficiency.
1. Enhanced efficiency – Streamlined stacking reduces core handling time.
2. Core integrity – Secure lids maintain sample quality for accurate geological analysis.
3. Worker safety – Stable stacks reduce accidents and improve safety at mine sites.
4. Transport-ready – Lids withstand truck, rail, and boat transport without compromising stability.
5. Universal fit – Compatible with HQ, NQ, and BQ core waiters, simplifying operations.
6. Space optimization – High stacking capability maximizes storage in warehouses and mine camps.
Indorock’s stackable core tray lids are designed for mining operations in India, Zambia, DRC, Saudi Arabia, and Indonesia. These lids meet international operational standards while being adapted to the unique conditions of each region.
Long-term durability – Resistant to repeated stacking, vibration, and environmental exposure
Reduced labor costs – Lightweight design simplifies handling and lowers manpower needs.
Simplified logistics – Stackable lids streamline transport planning and storage layout.
Environmentally friendly – Reusable plastic lids reduce dependence on heavy metal boxes, lowering the carbon footprint of operations.
Scalable solution – Ideal for small-scale exploration as well as large mining projects, providing high ROI.
Mining operations in India and Zambia that adopted Indorock stackable core trays reported:
30% faster stacking and handling
Zero core damage during multi-tray transport
Improved warehouse utilization
Enhanced worker safety with stable, wobble-free heaps
This demonstrates how innovative tray lid design directly enhances operational efficiency and sample protection.
A robust and stackable lid is no longer optional—it is essential. By converting trays into secure, interlocked, and space-efficient units, Indorock’s lids protect cores, enhance operational efficiency, and ensure worker safety.
For professionals in diamond drilling, core logging, and geological exploration, investing in stackable plastic core waiters with durable lids is a strategic decision. It guarantees:
Sample integrity for accurate geological analysis
Efficient workflow with reduced handling time
Maximized storage efficiency in warehouses, mine camps, and shipping containers
Enhanced worker safety in remote or uneven mining sites
Indorock’s stackable plastic core tray system represents the future of core handling and storage for the diamond drilling and core sampling industry.
